Item Details

Spindle Assembly, Heavy Duty

Item # 251-0678
Standard Pack: 1 ea
Suggested Retail: $43.39 ea
Order Qty:
Availability checkmarkIn Stock

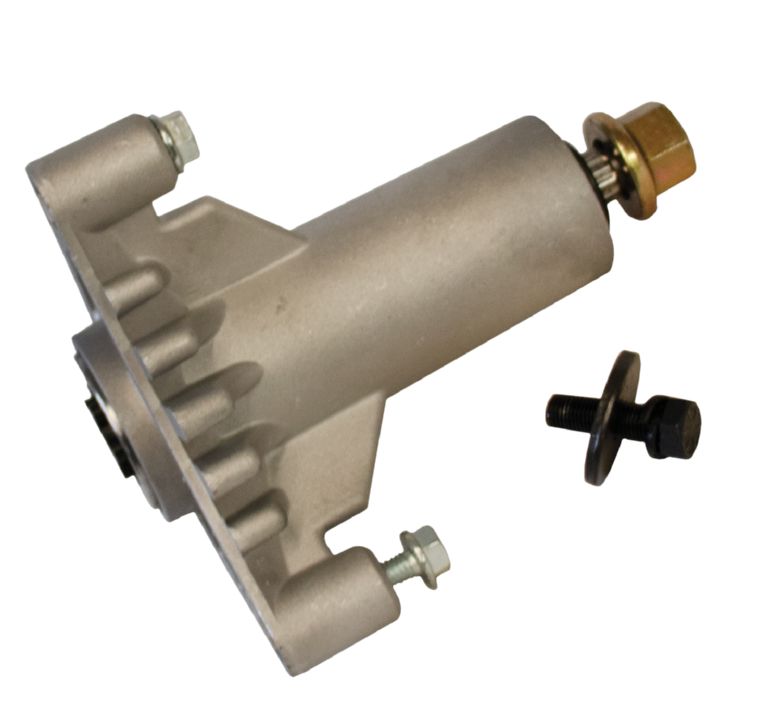

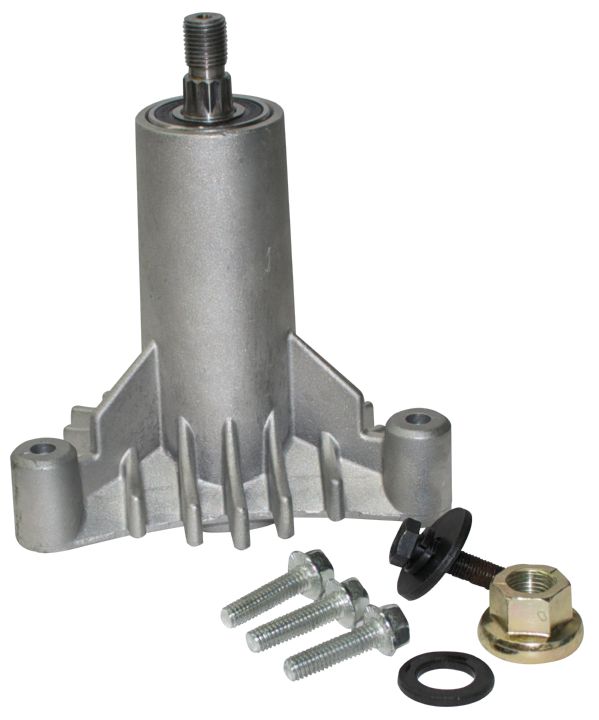

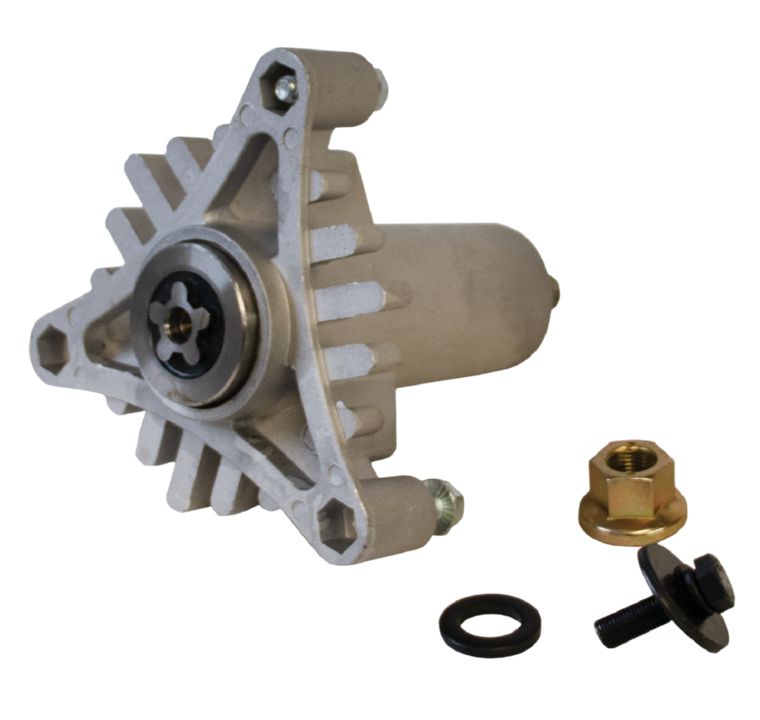

251-0678 - Spindle Assembly, Heavy Duty
251-0678 - Spindle Assembly, Heavy Duty 251-0678 - Spindle Assembly, Heavy Duty 251-0678 - Spindle Assembly, Heavy Duty
HD version for AYP & Husqvarna 36", 38" & 42" ventilated decks using star shaped center hole blades. Includes pulley nut, threaded bolts & lock washers. Uses #276-0680 pulley for 38" deck & #276-0684 pulley for 42" deck; #253-0664 spindle shaft, #252-0641 spindle housing, #272-7629 bottom bearing & #272-6860 top bearing. Pre-tapped mounting holes for easier assembly.
Replaces AYP #(s) 130794; Husqvarna #(s) 532 13 07-94, 582 92 23-01.
•Width: 6"
•Shaft Height: 6-7/8"
•Weight: 3.69 lbs
You May Also Need
217-1353 - Mandrel Spacer Washer
251-0640 - Self-Tapping Screw
272-6860 - Bearing
272-7629 - Spindle Bearing
274-9547 - Lock Nut
276-0680 - Spindle Pulley
276-0684 - Spindle Pulley
286-1795 - Self-Tapping Screw Hex Head
532173435 - Spindle Pulley
532187690 - Washer, Spacer, Mandrel
532850857 - Blade Bolt
Substitute Items Available
251-0675 - Spindle Assembly
251-0679 - Value Pack Spindle Assembly
532130794 - Spindle Assembly
