Item Details

Spindle Assembly

Item # 251-6613
Standard Pack: 1 ea
Suggested Retail: $113.63 ea
Order Qty:
Availability checkmarkIn Stock

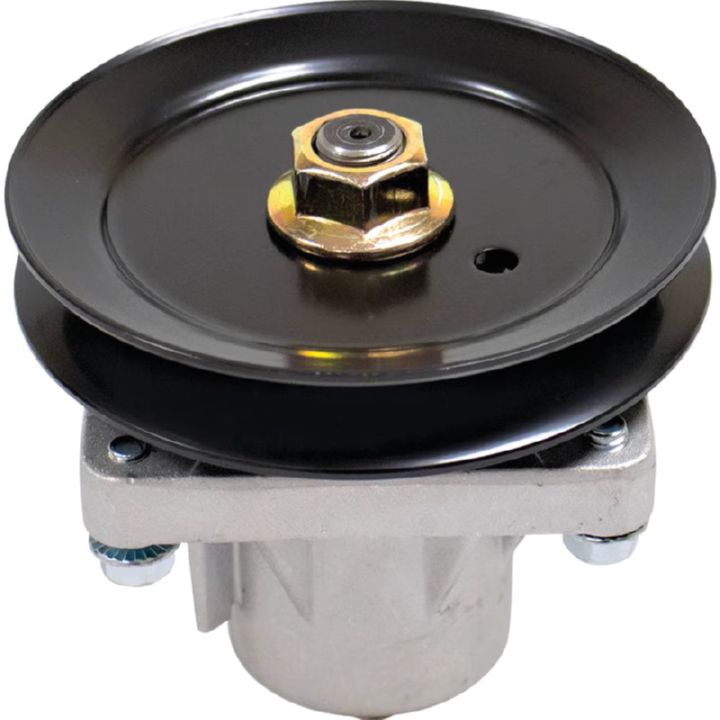

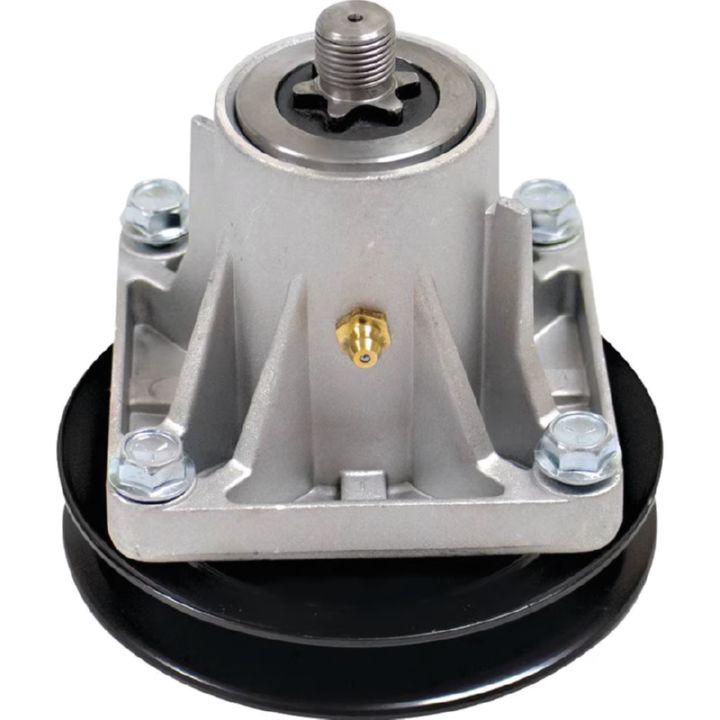

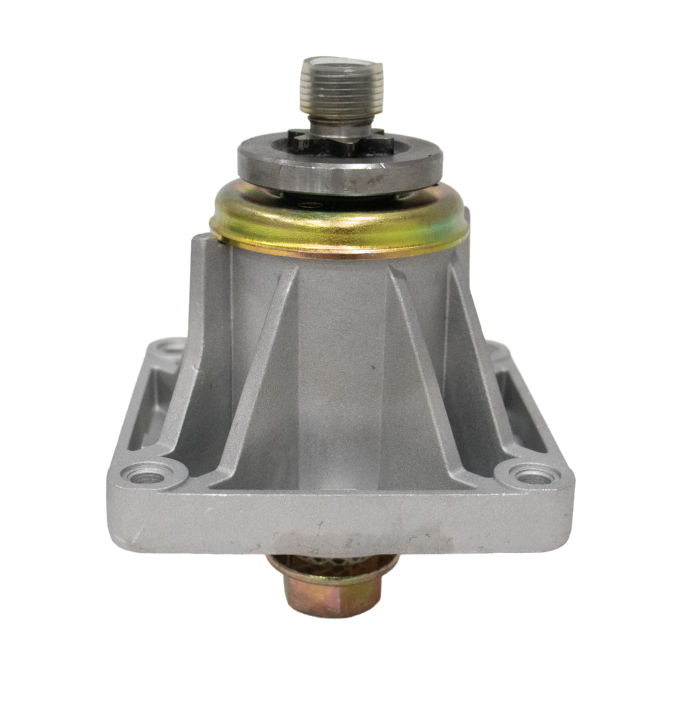

251-6613 - Spindle Assembly
251-6613 - Spindle Assembly 251-6613 - Spindle Assembly 251-6613 - Spindle Assembly
Fits MTD 46" cut decks, 1997 & newer; Toro 13AX60RH744 using 6 pt. star center hole blades. Uses # 272-7629 for replacement bearings & #274-6604 jackshaft nut.
Replaces MTD #(s) 618-0240, 618-0241, 618-0430, 618-0594, 918-0240C, 918-0430A; Toro #(s) 112-0311.
•Pulley OD: 5"
•Overall Height: 4-3/4"
•Thread Size: 5/8"-18
•Weight: 2.65 lbs
You May Also Need
256-6003 - Spindle Pulley
257-0291 - Hex Head Screw (Pack of 4)
272-7629 - Spindle Bearing
274-6604 - Jackshaft Nut
274-6606 - Jackshaft Nut
286-1712 - Self-Tapping Screw Hex Head
286-1731 - Self-Tapping Screw Hex Head
286-1760 - Self-Tapping Screw Hex Head
712-0417A - MTD Nut-Hex Flange 5/8
756-1187 - MTD Deck Pulley
MA2411 - Blade, XHT, (2) for 46"
MA2412 - Blade, XHT, (1) for 46"
MA2424 - Blade, XHT, (1) for 46"
MA2425 - Blade, XHT, (2) for 46"
Substitute Items Available
918-0240C - MTD Spindle Assembly
